Florida’s coastline, waterways, and drainage infrastructure face relentless erosion pressure from hurricanes, storm surge, tidal action, and rainfall runoff. Rip rap, angular stone placed to armor exposed soil, remains the most effective and cost-efficient solution for shoreline protection, seawall backing, ditch lining, and bank stabilization across the state.
Delta Aggregate supplies FDOT-approved rip rap and armor rock to contractors, municipalities, and waterway managers throughout Southwest Florida and beyond. This guide covers everything you need to know about rip rap types, applications, specifications, and sourcing for Florida projects.
What Is Rip Rap?
Rip rap (also written riprap) refers to a layer of large, irregular stones placed along exposed shorelines, embankments, riverbanks, seawalls, and drainage channels to prevent erosion. Unlike uniform block or sheet materials, rip rap’s angular, interlocking character allows it to absorb and dissipate wave energy rather than reflecting it, reducing scour at the toe and limiting undermining over time.
Materials include crushed granite, limestone, or concrete rubble. FDOT and Army Corps of Engineers projects specify rip rap by class type, with stone size, weight, and gradation requirements spelled out in the project specifications.
Rip Rap Types Used in Florida
FDOT classifies rip rap into standardized types. Understanding the difference is critical for spec compliance and long-term performance.
Type A Rip Rap
Type A is the lightest FDOT rip rap classification, typically used for low-energy environments such as roadside ditches and minor drainage swales. Stones are smaller in size and weight, making them suitable for areas without significant wave action or high-velocity flow.
Type B Rip Rap
Type B rip rap is a mid-weight classification used for moderate-energy environments, including canal banks, retention ponds, and secondary drainage channels. It is commonly specified in both Florida and Georgia DOT projects for ditch bank lining and culvert apron protection.
Type C Rip Rap
Type C is a heavier class suitable for Gulf Coast applications where wave energy and storm surge are significant factors. Projects along Florida’s Gulf Coast, from Charlotte Harbor south through Collier County, frequently specify Type C for bank and shore protection.
Type D Rip Rap — Armor Rock
Type D is the heaviest FDOT rip rap classification, typically referred to as armor rock. It is used in high-energy environments such as Atlantic Coast jetties, inlet stabilization, and Army Corps groins. Delta Aggregate supplies Type D armor rock for both Gulf and Atlantic Coast projects.

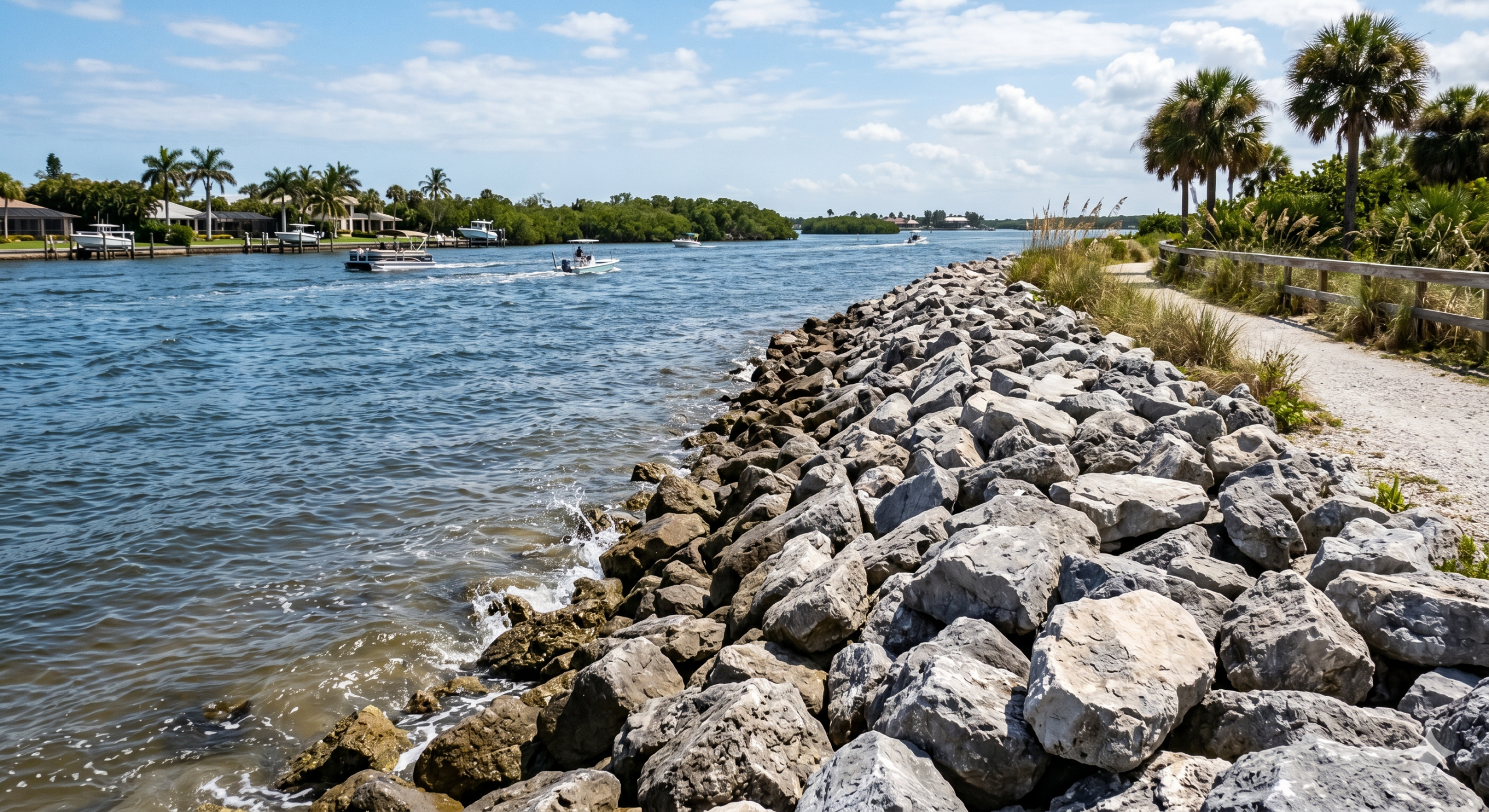

Rip Rap for Seawalls in Florida
Seawalls along Florida’s Intracoastal Waterway, tidal creeks, and bay fronts require rip rap backing to prevent scour at the toe and soil loss through cap gaps. Common practice is to place a bedding layer of Class C30 stone followed by a primary rip rap layer of Class C32 material, graded to the project’s wave environment.
Delta Aggregate stocks both FDOT C30 Rip Rap Bedding Stone and FDOT C32 Bank & Shore Rip Rap for seawall and shoreline projects across Collier, Lee, and Charlotte counties.
FDOT Rip Rap Specifications at a Glance
| FDOT Class | Application | Stone Size (typical) | Delta Product |
|---|---|---|---|
| C30 | Rip Rap Bedding | 3–12 in. | FDOT C30 Bedding Stone |
| C32 | Bank & Shore Rip Rap | 6–24 in. | FDOT C32 Bank & Shore |
| C34 | Gabion Basket Stone | 3–6 in. | FDOT C34 Gabion Stone |
| Type A | Low-energy ditches | 2–8 in. | Type A Rip Rap |
| Type B | Canal/ditch banks | 4–18 in. | Type B Rip Rap |
| Type C | Gulf Coast shores | 8–30 in. | Type C Rip Rap |
| Type D | Armor/jetties | 18–48 in. | Armor Rock / Type D |
Aggregate for Shoreline Protection
Beyond rip rap, Delta Aggregate supplies complementary materials for complete shoreline protection systems:
- Bedding stone (FDOT C30) to create a stable foundation layer beneath primary rip rap
- Crushed concrete as a cost-effective fill behind revetments
- Gravel and sand for drainage blankets and filter layers
- Gabion basket stone (FDOT C34) for wire-basket retaining structures
Why Choose Delta Aggregate for Florida Rip Rap Projects?
- FDOT-approved supplier for Class C30, C32, and C34 materials
- Experienced in delivering to Southwest Florida job sites, including challenging access locations
- Army Corps-rated Rip Rap, Armor Rock, and Groin Rock supply
- Flexible hauling and scheduling to keep your project on timeline
- Local knowledge of Collier, Lee, and Charlotte county project requirements
| Request a Rip Rap Quote for Your Florida Project Delta Aggregate | 9025 S Church Rd, Immokalee, FL | 815-791-8377 | www.deltaaggregate.com |
Whether you’re protecting a seawall, lining a ditch, or armoring an inlet, Delta Aggregate has the material, certifications, and delivery capability to support your project. Contact us today at 815-791-8377 or visit deltaaggregate.com.
